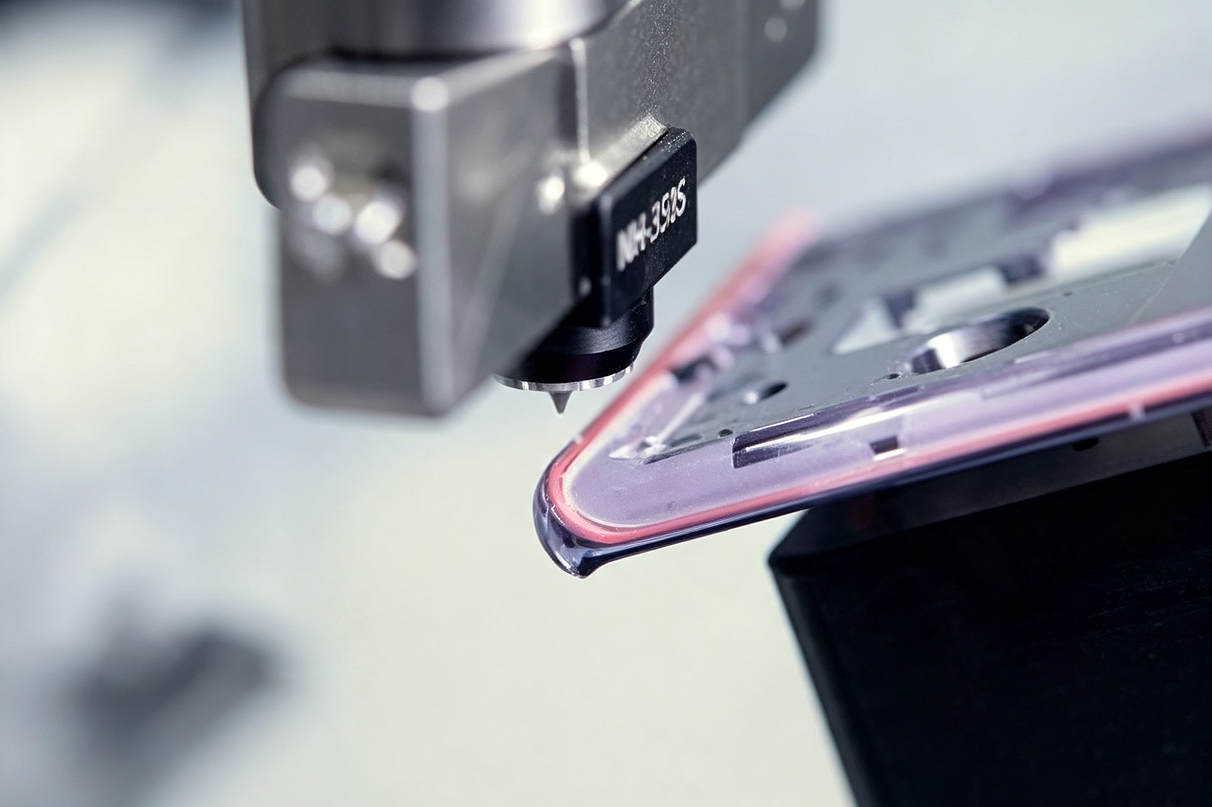

How Can You Improve Adhesive Dispensing Accuracy on Smartphone Middle Frames?
As smartphones continue to become thinner, lighter, and more integrated, adhesive dispensing on the smartphone middle frame has become increasingly challenging. Curved edges, narrow sealing grooves, and complex 3D structures require much higher dispensing accuracy than traditional flat-surface applications.
A five-axis dispensing machine addresses these challenges by automatically adjusting the dispensing angle while maintaining a constant nozzle-to-surface distance. This enables more accurate adhesive application, improves waterproof sealing performance, and helps manufacturers achieve higher production consistency in smartphone and consumer electronics assembly.
Why Is Smartphone Middle Frame Dispensing More Difficult?
Modern smartphone middle frames integrate multiple functional areas within a compact design, including:
·Curved aluminum frame edges
·Camera module openings
·Waterproof sealing grooves
·Speaker and microphone cavities
·Side button areas
·Flexible PCB (FPC) bonding positions
Compared with conventional dispensing applications, these complex structures require precise control of dispensing position, nozzle angle, and adhesive flow.Manufacturers often face challenges such as:
·Uneven adhesive beads
·Glue overflow
·Poor corner filling
·Interrupted dispensing paths
·Inconsistent dispensing height
·Reduced waterproof sealing performance
Even small dispensing deviations can increase material waste, reduce assembly yield, and affect overall product quality.
How Does a Five-Axis Dispensing Machine Solve These Challenges?
A five-axis dispensing machine improves smartphone middle frame dispensing by automatically adjusting the dispensing angle while maintaining a constant nozzle-to-surface distance. This enables precise adhesive application across curved, inclined, and irregular surfaces that are difficult to process with conventional three-axis systems.
By maintaining a stable dispensing path throughout the entire process, manufacturers can reduce common production issues such as glue overflow, uneven adhesive beads, poor corner filling, and inconsistent sealing quality. The result is improved dispensing accuracy, better waterproof performance, reduced material waste, and higher production consistency.
For smartphone manufacturers producing high-volume consumer electronics, five-axis dispensing technology provides a reliable solution for achieving precise adhesive application on increasingly complex product designs.
Why Is Vision-Guided Dispensing Important?
For high-precision smartphone manufacturing, accurate positioning is just as important as precise motion control.
Most five-axis dispensing systems are equipped with a CCD vision positioning system that automatically identifies the workpiece position before dispensing begins. The system compensates for placement deviations, reducing reliance on fixture accuracy and improving repeatability.
Key advantages include:
·Automatic product alignment
·Real-time position correction
·Higher dispensing consistency
·Reduced setup time
·Higher production yield
Depending on the vision system, dispensing valve, and machine configuration, positioning repeatability can reach ±0.01 mm for precision electronics applications.
Key Benefits of Five-Axis Dispensing
Compared with conventional dispensing equipment, a five-axis dispensing machine offers several advantages:
·Higher dispensing accuracy on curved and multi-angle surfaces
·Improved waterproof sealing quality
·Reduced glue overflow and material waste
·Higher production yield through fewer dispensing defects
·Greater flexibility for different smartphone models
·Easy integration with vision inspection, MES systems, conveyors, and automated production lines
These advantages help manufacturers improve both production efficiency and product consistency.
Typical Applications
In addition to smartphone middle frame dispensing, five-axis dispensing machines are widely used for:
·Smartphone display frame bonding
·Foldable phone hinge dispensing
·Tablet frame sealing
·Smartwatch housing assembly
·Camera module bonding
·AR/VR device assembly
·Laptop structural bonding
·Consumer electronics waterproof sealing
Their ability to accurately dispense adhesive on complex three-dimensional surfaces makes them suitable for a wide range of precision manufacturing applications.
Frequently Asked Questions
Why is a five-axis dispensing machine better than a three-axis system?
A five-axis dispensing machine automatically adjusts the dispensing angle while maintaining a constant nozzle-to-surface distance, providing more consistent adhesive application on curved and complex workpieces.
How can I reduce glue overflow during smartphone frame dispensing?
Glue overflow is often caused by inconsistent dispensing angles or nozzle distance. A five-axis dispensing machine continuously adjusts its orientation during dispensing, helping achieve cleaner adhesive beads and better process stability.
Can a five-axis dispensing machine dispense different types of adhesives?
Yes. With the appropriate dispensing valve and fluid delivery system, it can handle UV adhesives, silicone, epoxy, structural adhesives, conductive adhesives, and other materials commonly used in consumer electronics manufacturing.
Is vision guidance necessary for smartphone dispensing?
Yes. Vision-guided positioning improves alignment accuracy, reduces fixture requirements, and enhances dispensing repeatability, making it particularly valuable for high-volume smartphone production.
Why Choose ZiQi Five-Axis Dispensing Solutions?
ZiQi Technology provides customized dispensing solutions for precision electronics manufacturing. Our five-axis dispensing systems are designed to support complex dispensing paths, integrate with CCD vision systems, and accommodate a wide range of dispensing valves and adhesive materials.
Whether integrated into a standalone workstation or a fully automated production line, ZiQi's dispensing solutions help manufacturers improve dispensing accuracy, production efficiency, and process stability.
Conclusion
As smartphone designs continue to evolve toward thinner profiles, curved structures, and higher waterproof standards, precision adhesive dispensing has become a critical manufacturing process.
A five-axis dispensing machine combines synchronized multi-axis motion, vision-guided positioning, and intelligent dispensing technology to deliver accurate adhesive application on complex smartphone middle frames. By reducing dispensing defects and improving production consistency, it provides manufacturers with a reliable solution for modern smartphone and consumer electronics assembly.
